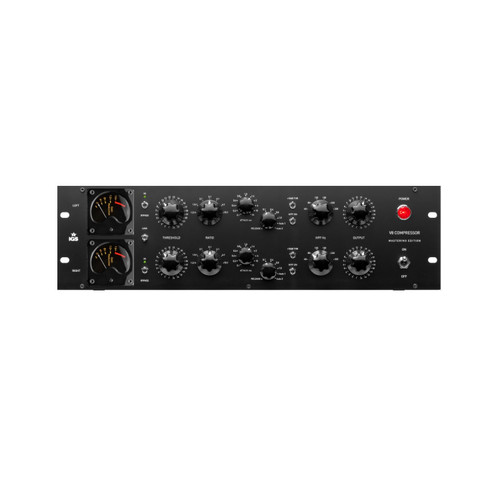

IGS Audio V8 Compressor

V8 Compressor
Smooth and gentle compression


Nothing sounds like a V8

Design
The V8 compressor is built only with discrete components and six Custom transformers (three per channel). The element responsible for the compression is the bridge, composed of 4 matched pulse diodes. The device is a dual mono unit with the option of linking the sidechain circuitry. All controls are stepped, for channel matching and recall.

Fully discrete path with transformers and transistors only
The punch and clarity your mixes are lacking
The V8 compressor is also equipped with a HPF on the sidechain circuitry. This feature allows you to cut the lowest frequencies from the signal, before they hit the compressor stage, and allow a single instrument, such as the kick drum, to go through without the pumping effect. An additional switch on the front (+10THR) lowers the compressor's threshold level by an extra 10dB. This feature is useful when compressing very low signals, or for very strong compression. The typical application for IGS V8 is bus compression. However, due to its nature and the incredible range of tone and color settings, uses of the V8 compressor are unlimited.


Classic 2254 feedback circuitry

Dimensions
This is truly a desert island compressor. The V8 takes its name from the order of projects. This is the eighth compressor designed by IGS Audio.

A must-have unit!
