Mercury M76m MKIV

M76m Mk. IV

Dual Mono Tube Studio Microphone Amplifiers

The new Mercury M76m [Mk. IV] is the latest version of our benchmark Studio Microphone Amplifier. The M76m is based on one of the most sought after vintage amplifier modules, the Telefunken/Siemens V76m. These modules were used in european broadcast and recording studios in the late 1950s and 60s. Later, after tube consoles where out of favor and replaced by discrete, transistor consoles, the V76 modules still lived on and were racked as outboard mic amps and used in the studios around the world.

Inspired by the vintage tone, craftsmanship the M76m focuses on bringing back the sound, look and feel that inspired not only this product but this company to manufacture recording equipment and keep this and other beloved circuits alive to make more music for another generation. The new M76m [Mk. IV] was stripped of a few vintage inspired, aesthetic extras extras of previous versions but is still loaded with the same exact tone and warmth utilizing the same exact circuit, same quality parts and same transformers we have used since we started building the first M76m at Mercury Recording Equipment.

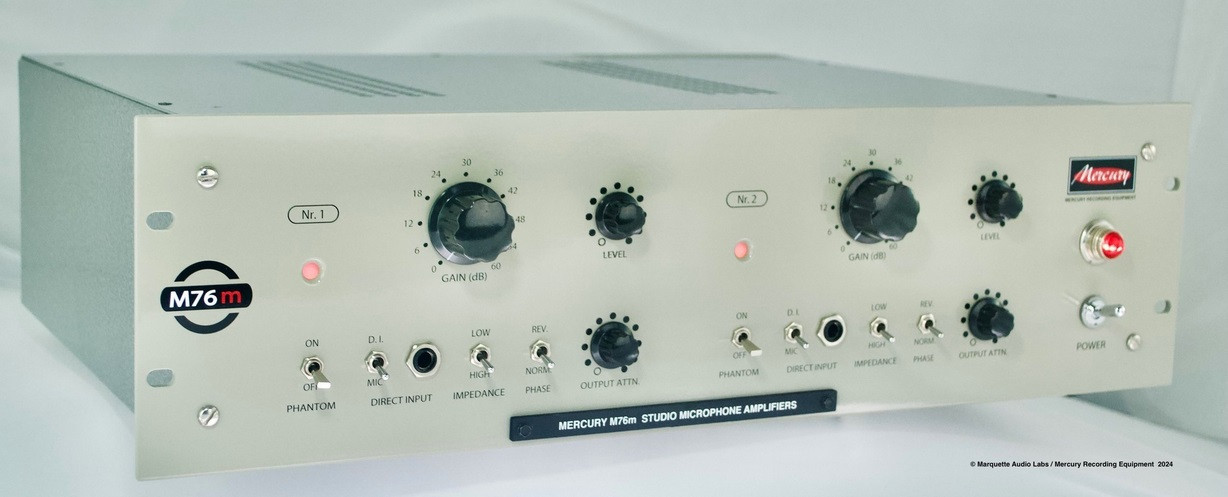

Features & Controls

The Mercury M76m Gain Control of 0 to +60dB in 6dB increments, works in conjunction with the Level Control and Output Attenuation. The Level Control, which will work as a fader, increasing (clockwise) and decreasing (counter clockwise) the amount of gain from the first stage to the second stage of the amplifier. This also allows you the ability to add musical (tube) "break up" by decreasing your level (control) and increasing the (course) gain. The Output Attenuation Control (-0 to -10dB) has been added for even more control, including the ability shape tones in several different ways, if desired, which works well on electric guitar recordings. We have also added an Impedance Select Switch for both high and low impedance devices, as well as all the staple features one expects from a modern piece of equipment were added. Phantom Power (on/off) , Phase (Polarity) Reversal, and our amazing sounding F.D.I. (FET Direct Input) Circuit.

The Mercury FDI (FET Direct Input), a proprietary J-Fet circuit, based on a class-A tube topology. The Mercury FDI is designed to reproduce every nuance of a direct recording, while the circuit lets the tube or solid-state character of the amplifier determine the overall tone. The instrument DI signal is sent through the entire microphone preamp circuitry, including Mercury's custom, massive input transformers, so that the individual character of each preamp comes through.
