Merging Technologies Anubis Premium SPS

 Anubis SPS Seamless Protection Switching, has been developed specifically to address the demands of broadcast facilities. SPS includes no compromise ST2022-7 class C and NMOS compliance with 2 separate Ethernet ports. Can also be configured in switch mode to alleviate the need for a network switch.

Anubis Premium includes 2 x Mic/Line Inputs, 2 x Instrument/Line Inputs, 4 x Balanced Outputs, 2 x Headphone Outputs, Talkback mic, Ravenna/AES67 I/O.

Premium version includes DXD, 384 kHz, DSD64/128/256.

(Pro version is capable of sample rates up to 192 kHz.)

ONE OF A KIND.
Compact AD/DA interface with 4 analog inputs (2 MicPre/Line and 2 Instrument/Line), 4 analog outputs, 2 independent headphones, GPIO and MIDI.

Internal low latency mixing engine operated through a large touch monitor giving access to multiple upgradable software applications.

I/O expandable up to 256 inputs and 256 outputs through an AES67/RAVENNA network connection.

MERGING QUALITY.
This ultra-mobile and stylish unibody case offers astonishing A/D performance with a dynamic range of 139dB with equally impressive mic pres. Our pristine D/A technology ensures that you hear what your project deserves. Anubis come in two variants: Anubis Pro gives you exceptional performance up to 192kHz. If your mission is working in true high-resolution, Anubis Premium offers up to 384kHz and DXD plus DSD flavors up to 256. What else would you expect from Merging!

DEVICE CONNECTIVITY.

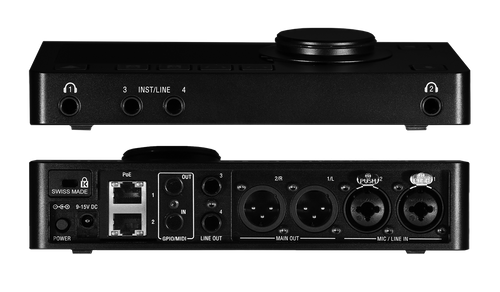

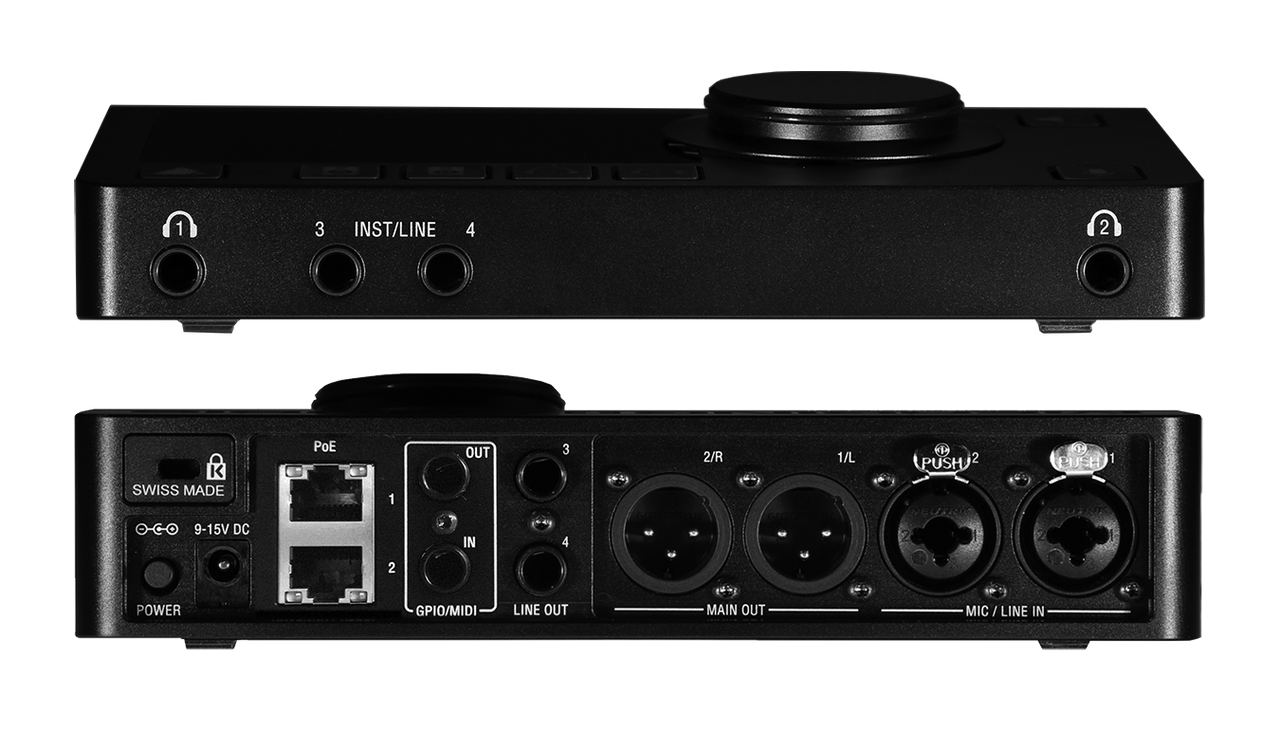

The Anubis interface has two analog high quality combo connectors, and an additional two front line/instrument analog inputs. On the output side, you get two gold plated XLR and two TRS jacks. In addition, there are two independent stereo headphone jacks with the best quality amplification we have ever done. There is also MIDI IO or GPIO and the all-important AES67/RAVENNA connector.
